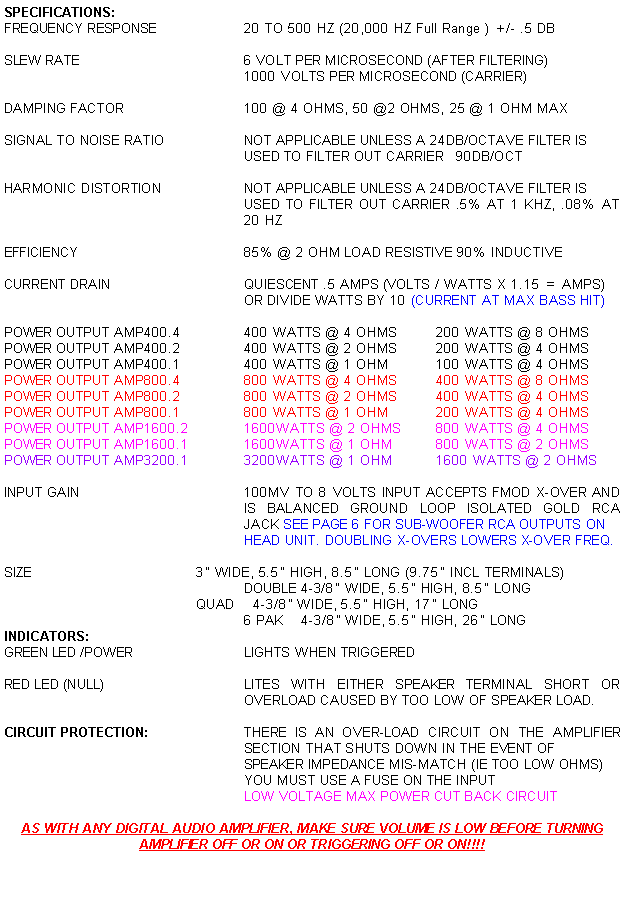

Text Box: SPECIFICATIONS: FREQUENCY RESPONSE 20 TO 500 HZ (20,000 HZ Full Range ) +/- .5 DB SLEW RATE 6 VOLT PER MICROSECOND (AFTER FILTERING) 1000 VOLTS PER MICROSECOND (CARRIER) DAMPING FACTOR 100 @ 4 OHMS, 50 @2 OHMS, 25 @ 1 OHM MAX SIGNAL TO NOISE RATIO NOT APPLICABLE UNLESS A 24DB/OCTAVE FILTER IS USED TO FILTER OUT CARRIER 90DB/OCT HARMONIC DISTORTION NOT APPLICABLE UNLESS A 24DB/OCTAVE FILTER IS USED TO FILTER OUT CARRIER .5% AT 1 KHZ, .08% AT 20 HZ EFFICIENCY 85% @ 2 OHM LOAD RESISTIVE 90% INDUCTIVE CURRENT DRAIN QUIESCENT .5 AMPS (VOLTS / WATTS X 1.15 = AMPS) OR DIVIDE WATTS BY 10 (CURRENT AT MAX BASS HIT) POWER OUTPUT AMP400.4 400 WATTS @ 4 OHMS 200 WATTS @ 8 OHMS POWER OUTPUT AMP400.2 400 WATTS @ 2 OHMS 200 WATTS @ 4 OHMS POWER OUTPUT AMP400.1 400 WATTS @ 1 OHM 100 WATTS @ 4 OHMS POWER OUTPUT AMP800.4 800 WATTS @ 4 OHMS 400 WATTS @ 8 OHMS POWER OUTPUT AMP800.2 800 WATTS @ 2 OHMS 400 WATTS @ 4 OHMS POWER OUTPUT AMP800.1 800 WATTS @ 1 OHM 200 WATTS @ 4 OHMS POWER OUTPUT AMP1600.2 1600WATTS @ 2 OHMS 800 WATTS @ 4 OHMS POWER OUTPUT AMP1600.1 1600WATTS @ 1 OHM 800 WATTS @ 2 OHMS POWER OUTPUT AMP3200.1 3200WATTS @ 1 OHM 1600 WATTS @ 2 OHMS INPUT GAIN 100MV TO 8 VOLTS INPUT ACCEPTS FMOD X-OVER AND IS BALANCED GROUND LOOP ISOLATED GOLD RCA JACK SEE PAGE 6 FOR SUB-WOOFER RCA OUTPUTS ON HEAD UNIT. DOUBLING X-OVERS LOWERS X-OVER FREQ. SIZE 3” WIDE, 5.5” HIGH, 8.5” LONG (9.75” INCL TERMINALS) DOUBLE 4-3/8” WIDE, 5.5” HIGH, 8.5” LONG QUAD 4-3/8” WIDE, 5.5” HIGH, 17” LONG 6 PAK 4-3/8” WIDE, 5.5” HIGH, 26” LONG INDICATORS: GREEN LED /POWER LIGHTS WHEN TRIGGERED RED LED (NULL) LITES WITH EITHER SPEAKER TERMINAL SHORT OR OVERLOAD CAUSED BY TOO LOW OF SPEAKER LOAD. CIRCUIT PROTECTION: THERE IS AN OVER-LOAD CIRCUIT ON THE AMPLIFIER SECTION THAT SHUTS DOWN IN THE EVENT OF SPEAKER IMPEDANCE MIS-MATCH (IE TOO LOW OHMS) YOU MUST USE A FUSE ON THE INPUT LOW VOLTAGE MAX POWER CUT BACK CIRCUIT AS WITH ANY DIGITAL AUDIO AMPLIFIER, MAKE SURE VOLUME IS LOW BEFORE TURNING AMPLIFIER OFF OR ON OR TRIGGERING OFF OR ON!!!!
