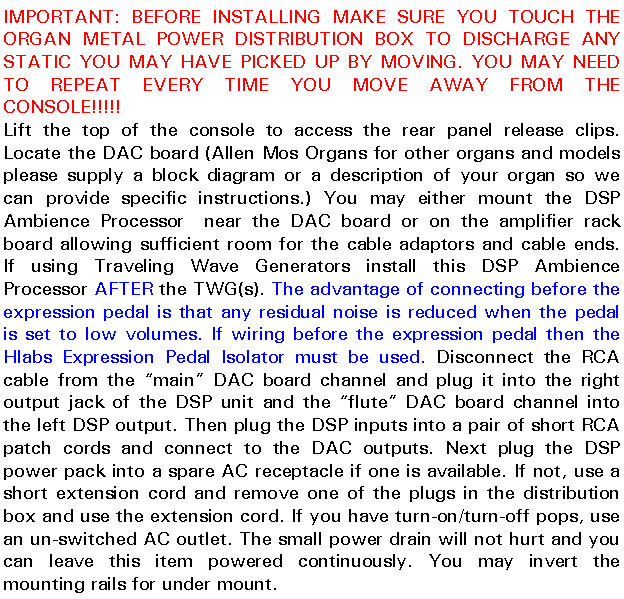

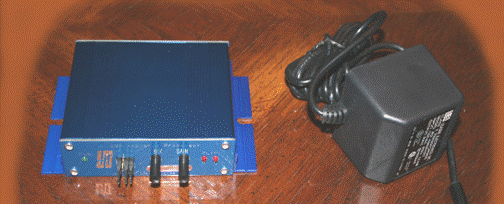

Text Box: IMPORTANT: BEFORE INSTALLING MAKE SURE YOU TOUCH THE ORGAN METAL POWER DISTRIBUTION BOX TO DISCHARGE ANY STATIC YOU MAY HAVE PICKED UP BY MOVING. YOU MAY NEED TO REPEAT EVERY TIME YOU MOVE AWAY FROM THE CONSOLE!!!!! Lift the top of the console to access the rear panel release clips. Locate the DAC board (Allen Mos Organs for other organs and models please supply a block diagram or a description of your organ so we can provide specific instructions.) You may either mount the DSP Ambience Processor near the DAC board or on the amplifier rack board allowing sufficient room for the cable adaptors and cable ends. If using Traveling Wave Generators install this DSP Ambience Processor AFTER the TWG(s). The advantage of connecting before the expression pedal is that any residual noise is reduced when the pedal is set to low volumes. If wiring before the expression pedal then the Hlabs Expression Pedal Isolator must be used. Disconnect the RCA cable from the “main” DAC board channel and plug it into the right output jack of the DSP unit and the “flute” DAC board channel into the left DSP output. Then plug the DSP inputs into a pair of short RCA patch cords and connect to the DAC outputs. Next plug the DSP power pack into a spare AC receptacle if one is available. If not, use a short extension cord and remove one of the plugs in the distribution box and use the extension cord. If you have turn-on/turn-off pops, use an un-switched AC outlet. The small power drain will not hurt and you can leave this item powered continuously. You may invert the mounting rails for under mount.
