TO HAVE STOP CONTROL OF EACH DIVISION, INCLUDING THE ALLEN MIDI ENSEMBLE (trade name owned by Allen Organ Company). THERE ARE TWO VERSIONS OF THE SOFTWARE. THE STANDARD EXPRESSION PEDAL VERSION DOES NOT GO TO ZERO, SO IF WIRED FOR STOP CONTROL, THE VOLUME WILL BE SLIGHT WHEN THE STOP IS OFF. THE STOP SELECT VERSION SETS THE VOLUME AT ZERO WHEN THE EXPRESSION INPUT IS LESS THAN 10% OF MAXIMUM.
BE SURE YOU HIT THE “FCTN” BUTTON ON THE Allen Ensemble™ sound module AND USING THE UP/DOWN BUTTONS SELECT “GENERAL MIDI PLAY MODE” !!!!!!!!

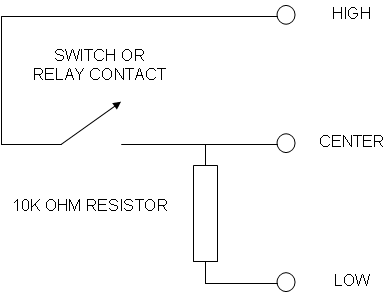

WIRE A SWITCH OR RELAY CONTACT ACROSS EACH EXPRESSION PEDAL CENTER AND HIGH TERMINALS AND REMOVE THE FACTORY INSTALLED JUMPER. THEN WIRE A 10K RESISTOR BETWEEN THE CENTER TERMINAL AND GROUND TERMINAL. WHEN THE SWITCH IS OPEN OR OFF, THE VOLUME WILL BE AS IF THE EXPRESSION PEDAL FOR THAT DIVISION IS MINIMUM. |
