M705 DC Volt Panel Meter

🇺🇸 MADE IN THE USA 🇺🇸

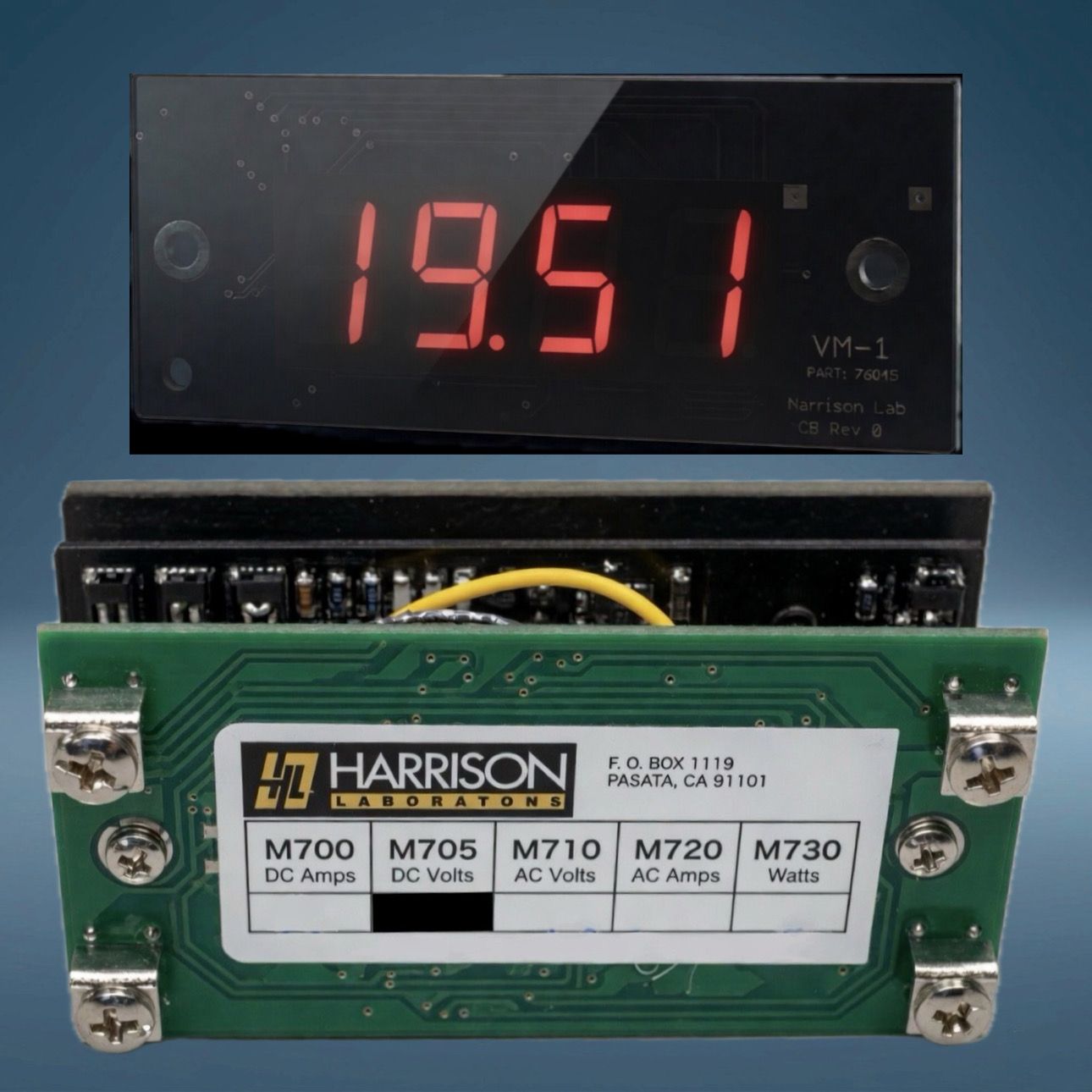

Hlabs M705 DC Volt Panel Meter - High-Visibility Marine & Generator Monitor

Upgrade your monitoring system with the Harrison Laboratories M705, a professional-grade 3-1/2 digit DC digital voltmeter engineered for accuracy and durability. Designed to replace outdated analog meters, this high-precision panel meter is perfect for demanding applications including power generation, standby generators, and yacht power systems.

The M705 offers a crisp, highly visible display and a compact form factor, ensuring reliable performance where precision voltage monitoring is critical.

Key Features & Benefits

• High-Precision Monitoring: Features a 3-1/2 digit display for accurate real-time voltage readings.

• Superior Visibility: Large 0.6” high digits (available in Red or optional Blue) ensure the display is easy to read from a distance.

• Versatile Range Options: Can be pre-set via solder jumpers for multiple ranges: 0 to 1.999V, 19.99V, 199.9V, or 299.9V (Defaulted for 12V vehicle systems).

• Professional Engineering: Includes a smoked bezel mounting plate for a clean, high-end integrated look.

• Low Profile Design: Compact dimensions of approximately 2” x 3” (Faceplate approx. 3.25" x 1.5") make it an ideal replacement for traditional analog meters.

• No Sensors Required: Simplified installation with no external sensors needed for operation.

Technical Specifications

• Model: M705 (Basic 3-1/2 digit VM-1)

• Display: 0.6" Red or White Digits

• Accuracy: ± 1% of full scale

• Power Requirements: 11.0 to 14.7 VDC

• Current Draw: 250 to 350 milliamps

• Mounting: Includes smoked bezel mounting plate; pre-wired to backboard terminal plate

Made in the USA. Harrison Laboratories has been a leader in precision electronic components since 1979. Choose the M705 for a heavy-duty, engineered solution to your power monitoring needs.
